Custom Tool Setup

Custom tools let your AI agent call your own APIs during a conversation — looking up an order, checking availability, or triggering an action in your systems. This guide covers tool configuration, authentication, and the response format your API must return.

When to use a custom tool

Knowledge files answer questions from static content. Custom tools fetch live data or perform actions at the moment the user asks.

Use a custom tool for

Live data: order status, account balance, stock levels
Per-user answers that depend on who is asking
Actions: create a ticket, book a slot, send a request

Use knowledge files for

Product documentation and FAQs
Policies, guides, and reference material
Content that changes rarely and applies to everyone

Registering a tool

Register a tool in your agent settings. The agent decides when to call it based on the tool's name and description, so write them the way you would explain the tool to a colleague.

Swipe sideways to see the full table

Field	Purpose	Example
Tool name	Unique identifier the agent uses to select the tool	Get User Orders
Description	Tells the agent what the tool does and when to use it	Retrieves the current user's order history
API URL	Endpoint on your backend the platform will call	https://api.yoursite.com/orders
Request type	HTTP method (GET, POST, ...)	GET
Use Auth	Whether the call should carry the authenticated user's token	true

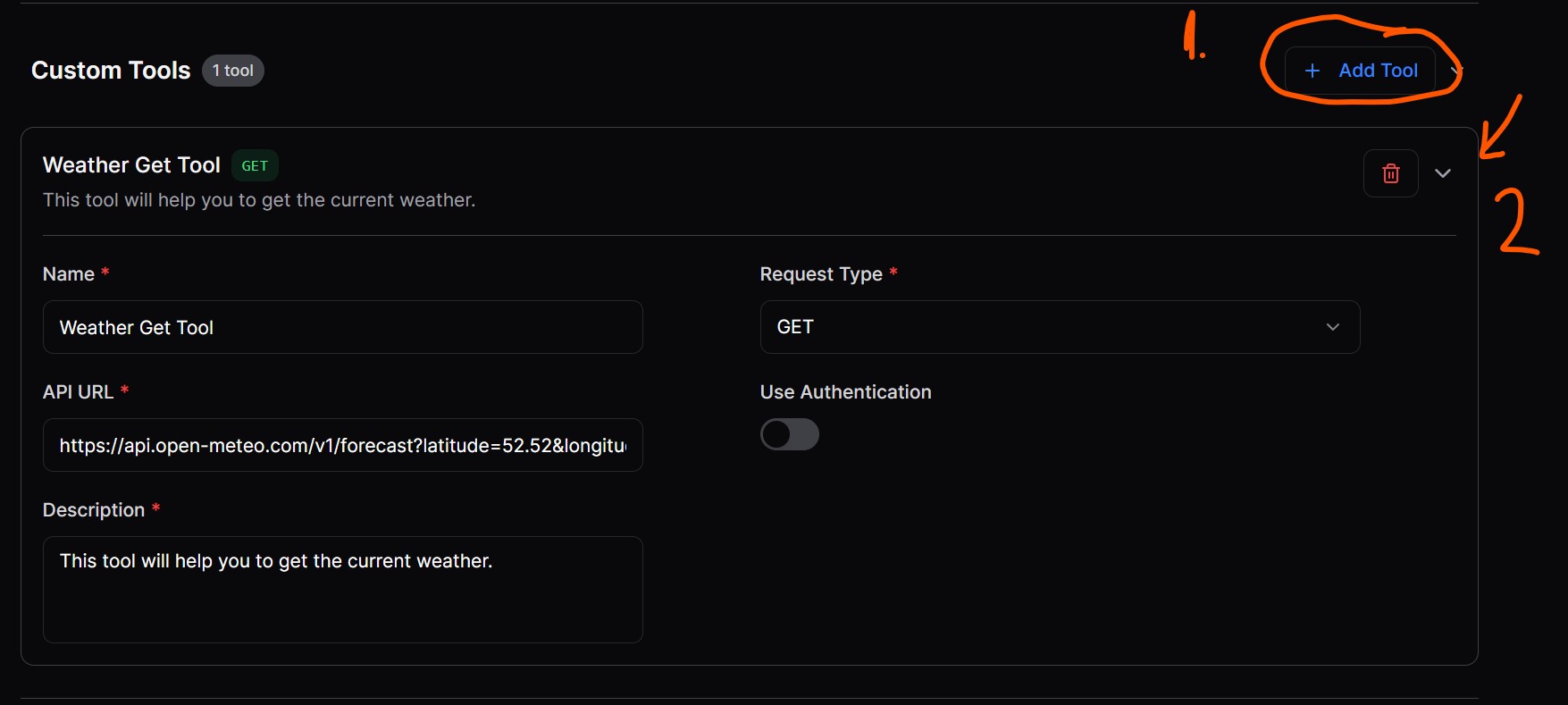

Custom tool configuration form showing name, description, URL, request type, and authentication settings for a Weather API tool

Configuring a custom Weather API tool (click to enlarge)

API response format

Your API must return JSON in this structure. The agent uses toolOutput as the main result and appends metadata as supporting context.

{
  "toolOutput": "Main result or data from your API",
  "metadata": {
    "source": "external-api-name",
    "timestamp": "2025-05-20T12:30:00Z",
    "confidenceScore": 0.92,
    "processingTimeMs": 1234
  }
}

Widget authentication

If your tools need to know who the user is, enable the Use Auth option in your widget settings. The chat widget then calls the /agents endpoint with both authentication parameters:

/agents?public_api_key=your_api_key&user_token=user_session_token

Authentication endpoint

Implement an authentication endpoint (auth_url) on your backend that validates the user_token and returns:

{
  "status": "success",          // or "failed"
  "userProperties": {
    "userId": "12345",
    "name": "John Doe",
    "email": "john.doe@example.com",
    "roles": ["admin", "editor"]
  }
}

Return "success" when the token is valid and "failed" when it is not. The userProperties object is made available to your tools for personalized responses.

Authorization header

Every tool endpoint with use_auth = true receives the user token in the Authorization header using the Bearer scheme:

Authorization: Bearer <user_token>

Implementation example

// Node.js Express example
app.get('/api/user-data', (req, res) => {
  const authHeader = req.headers.authorization;
  const token = authHeader && authHeader.split(' ')[1];

  if (!token) {
    return res.status(401).json({ error: 'Token required' });
  }

  validateToken(token).then(user => {
    res.json({
      toolOutput: "User data retrieved successfully",
      metadata: {
        source: "user-api",
        timestamp: new Date().toISOString()
      }
    });
  });
});

Built-in integrations

Before building a custom tool, check whether a built-in integration already covers your use case. Tridan AI agents connect directly to:

Gmail
Google Calendar
Google Maps
Outlook
Confluence
Jira
Notion
Zendesk
WhatsApp
SMTP
LinkedIn

MCP (Model Context Protocol)

Tridan AI agents can also connect to MCP servers. MCP is an open standard for exposing tools to AI agents, so any service that publishes an MCP server can be plugged into your agent without writing and hosting custom endpoints yourself.

Connect standardized third-party tools with a server URL instead of a custom API
The agent discovers the server's tools and their parameters automatically
Combine MCP tools with your own custom tools on the same agent

Best practices

Write clear tool descriptions

The agent chooses tools based on their descriptions. State what the tool returns and when it should be used; vague descriptions lead to missed or wrong tool calls.

Secure your endpoints

Use HTTPS everywhere, validate user tokens on every request, grant each tool the minimum access it needs, and add rate limiting.

Validate inputs and handle errors

Treat tool parameters as untrusted input. Return clear HTTP status codes and error messages, handle timeouts gracefully, and log errors so failed calls are easy to debug.

Integration checklist

Configure the tool with a clear name, description, URL, and request type
Ensure your API returns responses in the required format
Implement the authentication endpoint if the tool needs user context
Expect the user token in the Authorization header (Bearer scheme) for protected endpoints
Add rate limiting and error handling to your API
Test the tool with both authenticated and non-authenticated requests
